§ C5 · Track C · A team on one state

Write a plan policy

A rule is a shape that the plan document has to fit, in the CUE you already know. Read the document, write rules in the policy studio of the viewer, where each is held against the plans you saved and against the resources of the state as you type, keep them as files for the pipeline, and put one in force.

Time
25 min
Level
intermediate
Needs
B11 and C3
You will learn
What does a rule read? How do you say "every change of this type" and "at least this much"? How do you try a rule on a plan, or on the whole estate, without applying anything?
Done when
A rule you wrote refuses a plan file in the policy studio and under pravo policy test with exit code 5, and a plan against the state is refused by the policy in force.

View as Markdown

On this page

B11 wrote one policy: a list template with a guard and error(), and the plan that deleted a resource was refused. This lesson is about writing rules. In the OpenTofu world a rule on a plan is a program in another language, run by another tool over the JSON of the plan, and the team that writes infrastructure learns a second language to guard it. In pravo a rule is a CUE value, and the plan has to unify with it. The language of the rule is the language of the specification, and a rule is read the way A3 read two declarations of one field: it holds when the two agree.

a rule as a program
deny[msg] {
  some i
  input.resource_changes[i].change.actions[_] == "delete"
  msg := "no deletes"
}
a rule as a shape
summary: destroy: 0

This lesson reads the document a rule sees, then writes three rules, each a little more specific, in the policy studio of the viewer, where a rule is held against the plans you saved and against the resources of the state as you type. Each rule is a file as well, which pravo policy test holds against plan files in a pipeline, with the same verdict. Nothing is applied or stored until the last section puts one rule in force.

The document a rule reads

Work in an empty directory: it is the root, with a name and a password, and its state is sealed to Ada as C3 did it, in a local directory, because a policy in force is a signed version in the state. The setup runs the steps of C3 for you. The rules on trial live in rules/, inside the root.

main.cue
package team

import rnd "pravo.dev/providers/hashicorp/random"

$random: rnd.#Provider & {$version: "~> 3.6"}

pet:    $random.#Resource.random_pet & {length: 2}
secret: $random.#Resource.random_password & {length: 16}

A rule sees the plan document: the JSON that pravo plan --json prints, with the fields that only the state or the clock could give left out. Make the password longer and save the plan, and read the parts of the document that rules read most:

terminal
$sed -i 's/length: 16/length: 20/' main.cue
$pravo plan --out longer.plan --json 2> /dev/null | jq -c '{summary: (.summary | {add, change, destroy}), changes: [.changes[] | {addr, type, action, after: {length: .after.length}}]}'
{"summary":{"add":1,"change":0,"destroy":1},"changes":[{"addr":"secret","type":"random_password","action":"replace","after":{"length":20}}]}

summary counts what the plan does. changes is a list with one entry per resource the plan touches: its address, its type, its action and its values after the change, and before it where there was a before. A password cannot be made longer in place, so the action is replace, and a replacement counts once as an addition and once as a destruction. The plan document in a policy lists every field and when each is present.

Open the studio

The policy studio is the second page of the Policies section of the viewer: an editor on the left, and on the right the verdict of its text against a plan, or against every resource of the state, as you type. Start the viewer from the root in a second terminal and leave it running:

pravo serve

Open the address it prints and press s. The editor starts from a blank policy, in the form the specification declares one: the import of the pravo package, and a pravo.#Policy with a description and a rule. At the right, a switch reads Resources, with their count, and Plans, with the count of the plan files in the root and of the plans stored in the state; longer.plan is already there. Nothing the studio does is applied or stored. The rule runs in a scratch evaluator, and the state and the policies in force stay as they were.

A rule is a shape

The smallest rule is one field with one value. Replace the draft in the editor with this policy, turn the switch to Plans, and pick longer.plan under Look at.

rules/no_destroy.cue
import "pravo.dev/pravo"

no_destroy: pravo.#Policy & {
	description: "A plan may create and change. It may not destroy."
	rule: summary: destroy: 0
}

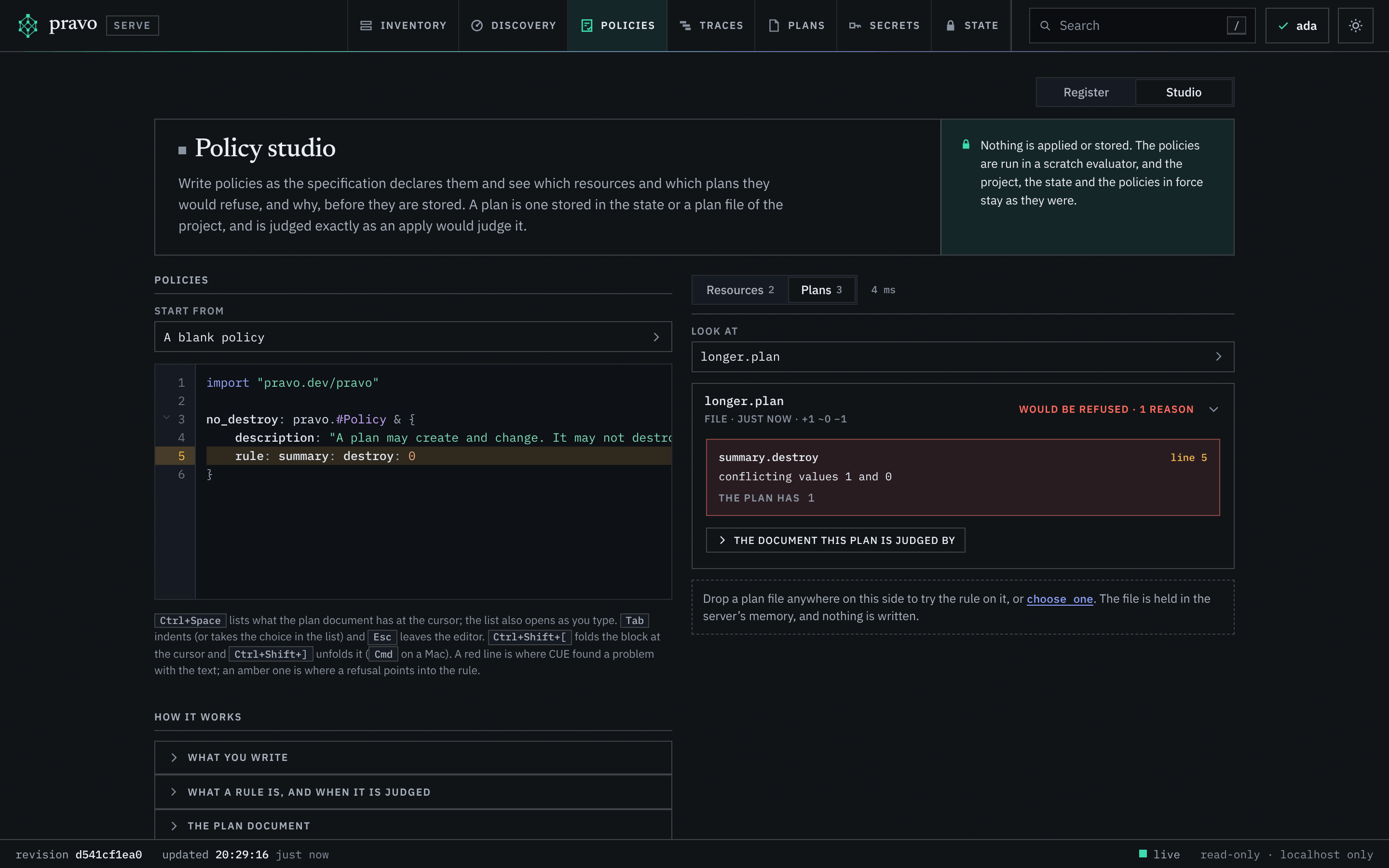

The policy studio of the viewer. At the left, the list Start from reads A blank policy, and the editor holds six lines: the import of the pravo package and the policy no_destroy, with the description A plan may create and change, it may not destroy, and the rule summary destroy 0. Line 5, the rule, is marked in amber. At the right, the switch reads Resources 2 and Plans 3, with Plans pressed and the time 3 ms. The list Look at reads longer.plan, and the card of longer.plan says file, just now, +1 −0 −1, and would be refused, 1 reason: summary.destroy, line 5, conflicting values 1 and 0, the plan has 1. Under it a disclosure for the document this plan is judged by, and a box to drop a plan file on. The policy studio of the viewer. At the left, the list Start from reads A blank policy, and the editor holds six lines: the import of the pravo package and the policy no_destroy, with the description A plan may create and change, it may not destroy, and the rule summary destroy 0. Line 5, the rule, is marked in amber. At the right, the switch reads Resources 2 and Plans 3, with Plans pressed and the time 3 ms. The list Look at reads longer.plan, and the card of longer.plan says file, just now, +1 −0 −1, and would be refused, 1 reason: summary.destroy, line 5, conflicting values 1 and 0, the plan has 1. Under it a disclosure for the document this plan is judged by, and a box to drop a plan file on.

fig. 1 The studio with no_destroy held against longer.plan: the plan would be refused, with the path, the two values and the line of the rule.

The plan's summary.destroy is 1 and the rule's is 0. Two values for one field, and they do not agree: that is the error of A3, read the same way, with the path first, and the line of the rule that the refusal points into is marked in amber. The same text is the file rules/no_destroy.cue. pravo policy test holds a file against plan files and gives the verdict in a terminal, and exit code 5 says that a plan would be refused, so a pipeline can gate a draft rule on the plans the team has.

terminalexit 5
$pravo policy test rules/no_destroy.cue --plan longer.plan
Policy no_destroy (rules/no_destroy.cue: no_destroy)
  ✗ longer.plan  file  would be refused
      no_destroy: summary.destroy: conflicting values 1 and 0
      the plan has 1
  0 of 1 judged plan hold.

Error: 1 plan would be refused

A plan that creates and destroys nothing fits the rule. Put the length back, add a name and save that plan. In the studio, add.plan joins the list under Look at, and the rule holds for it.

main.cue
package team

import rnd "pravo.dev/providers/hashicorp/random"

$random: rnd.#Provider & {$version: "~> 3.6"}

pet:    $random.#Resource.random_pet & {length: 2}
secret: $random.#Resource.random_password & {length: 16}
second: $random.#Resource.random_pet & {length: 2, prefix: "db"}
terminalexit 5
$pravo plan --out add.plan > /dev/null
$pravo policy test rules/no_destroy.cue --plan add.plan --plan longer.plan
Policy no_destroy (rules/no_destroy.cue: no_destroy)
  ✓ add.plan  file  holds
  ✗ longer.plan  file  would be refused
      no_destroy: summary.destroy: conflicting values 1 and 0
      the plan has 1
  1 of 2 judged plans hold.

Error: 1 plan would be refused

A rule says nothing about what it does not mention. summary: destroy: 0 has no opinion on how many resources are added, on their types or on their values, and a plan that adds fifty passwords of one character fits it.

A rule over every change

A rule about values is a rule about each entry of changes. A9 wrote one rule for every entry of a struct; [...X] is the same for a list: every element has to fit X. Inside it, an if from A12 picks the changes the rule is about, and a bound from A5 says how much is enough. Type it into the editor, and look at add.plan.

rules/long_passwords.cue
import "pravo.dev/pravo"

long_passwords: pravo.#Policy & {
	description: "A password has at least sixteen characters."
	rule: changes: [...{
		type: string
		if type == "random_password" {
			after?: length: >=16
		}
	}]
}

type: string declares the field the guard reads. A template is its own scope, so a field has to be named there before a condition can read it. The condition adds the constraint on after.length to the changes of that type and to no other. The question mark in after? is A7's optional field: a change that has an after, which a creation, an update and a replacement do, has to fit the constraint, and a deletion, which has no after, is left alone. Without it the rule would ask a deletion for a length it cannot have, and refuse every destroy.

Ask what the template adds to a change whose type is not random_password.

Predict add.plan creates a pet and touches no password. What does the rule say about it?

Nothing. The guard is not taken, so the change only has to be a struct with a type that is a string, which every change is. The plan holds.

Make the password shorter and save that plan. The block carries status=unintended: the specification is valid, and the plan breaks the rule.

main.cueunintended
package team

import rnd "pravo.dev/providers/hashicorp/random"

$random: rnd.#Provider & {$version: "~> 3.6"}

pet:    $random.#Resource.random_pet & {length: 2}
secret: $random.#Resource.random_password & {length: 12}
second: $random.#Resource.random_pet & {length: 2, prefix: "db"}
terminal
$pravo plan --out short.plan > /dev/null

Pick short.plan under Look at:

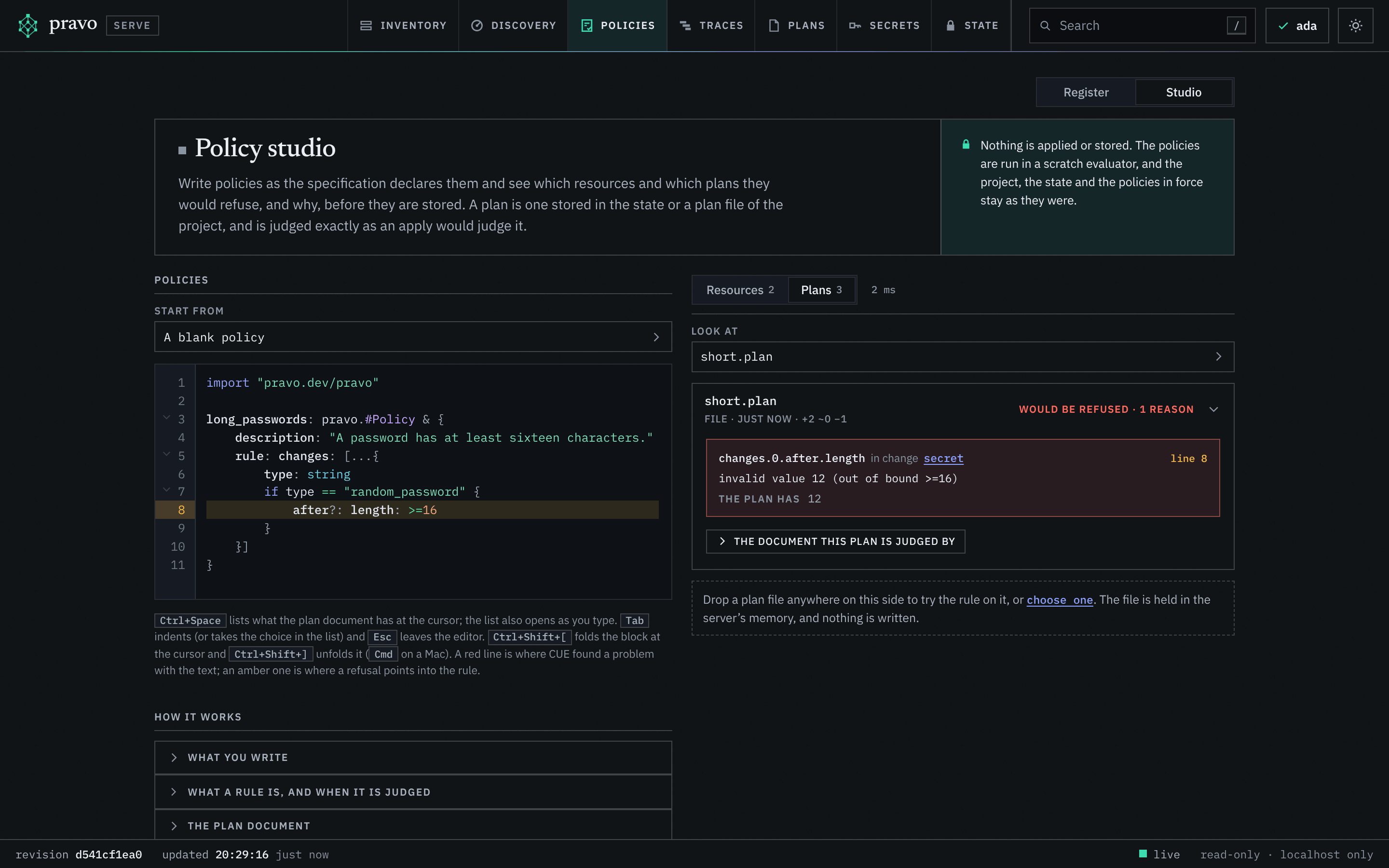

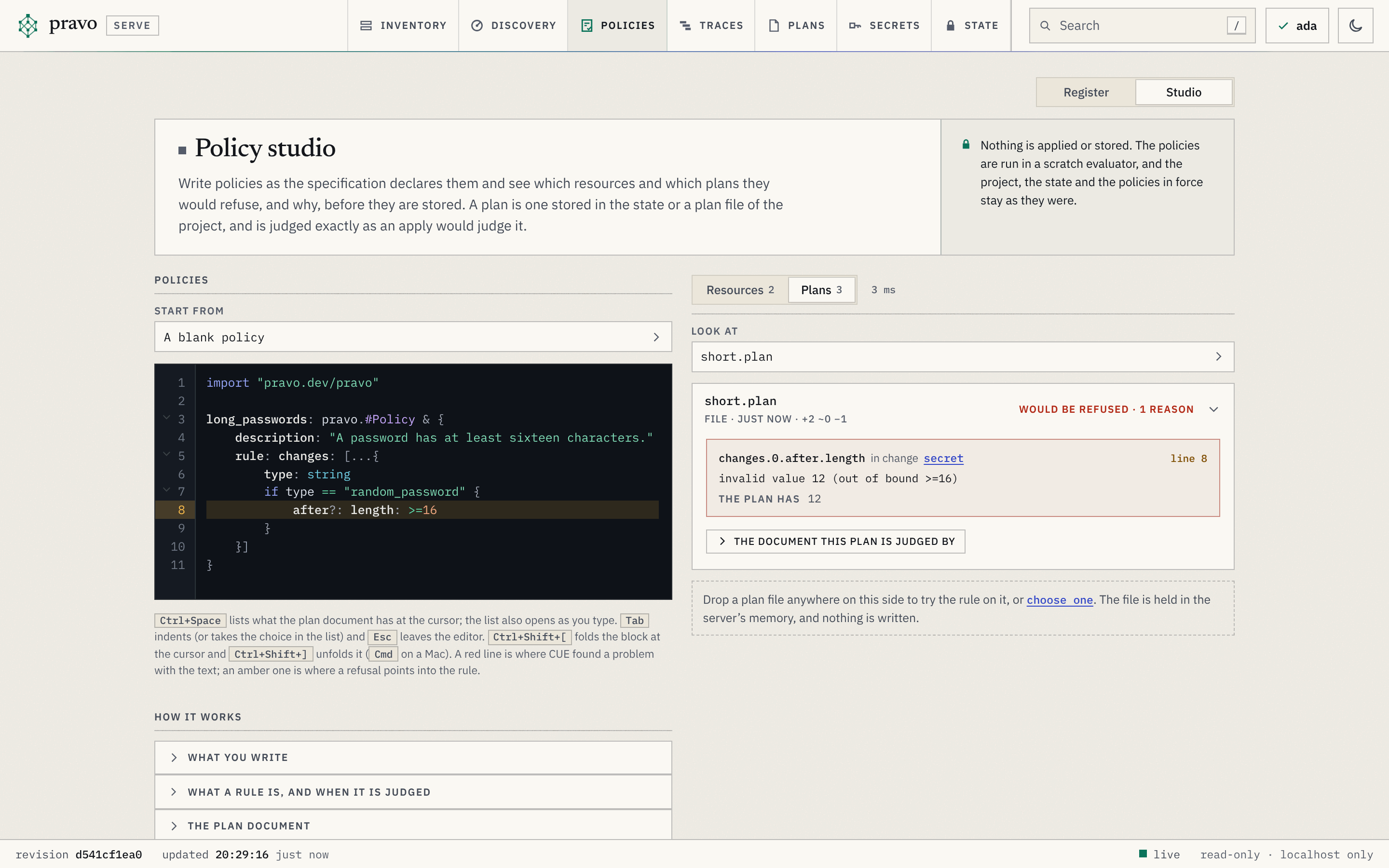

The policy studio with the policy long_passwords in the editor: the description A password has at least sixteen characters, and the rule changes, a list template with type string and, if the type is random_password, after length at least 16. Line 8, the bound, is marked in amber. At the right, Plans is pressed with the time 9 ms, Look at reads short.plan, and the card of short.plan says file, just now, +2 −0 −1, and would be refused, 1 reason: changes.0.after.length in change secret, line 8, invalid value 12, out of bound at least 16, the plan has 12. Under it a disclosure for the document this plan is judged by, and a box to drop a plan file on. The policy studio with the policy long_passwords in the editor: the description A password has at least sixteen characters, and the rule changes, a list template with type string and, if the type is random_password, after length at least 16. Line 8, the bound, is marked in amber. At the right, Plans is pressed with the time 9 ms, Look at reads short.plan, and the card of short.plan says file, just now, +2 −0 −1, and would be refused, 1 reason: changes.0.after.length in change secret, line 8, invalid value 12, out of bound at least 16, the plan has 12. Under it a disclosure for the document this plan is judged by, and a box to drop a plan file on.

fig. 2 long_passwords held against short.plan: the change of secret fails the bound, and the line of the bound is marked.

changes.0 is a position in the list, the first change of the plan, and the reason names it, secret, with the value the plan has. The message is the one A5 showed for a value outside a bound. The rule did not have to name secret: it holds for every password the team will ever plan. The file gives the same verdict on both plans:

terminalexit 5
$pravo policy test rules/long_passwords.cue --plan short.plan --plan add.plan
Policy long_passwords (rules/long_passwords.cue: long_passwords)
  ✗ short.plan  file  would be refused
      long_passwords: changes.0.after.length: invalid value 12 (out of bound >=16)
      change secret; the plan has 12
  ✓ add.plan  file  holds
  1 of 2 judged plans hold.

Error: 1 plan would be refused

Hold it against the estate

A plan file is one change. The other side of the switch, Resources, holds the rule against every resource of the state as if one plan updated them all to what they hold now: the answer to the question what in the estate the rule would refuse today. The password in the state has sixteen characters, so long_passwords passes both resources. Raise the bound in the editor to >=20, and turn the switch to Resources.

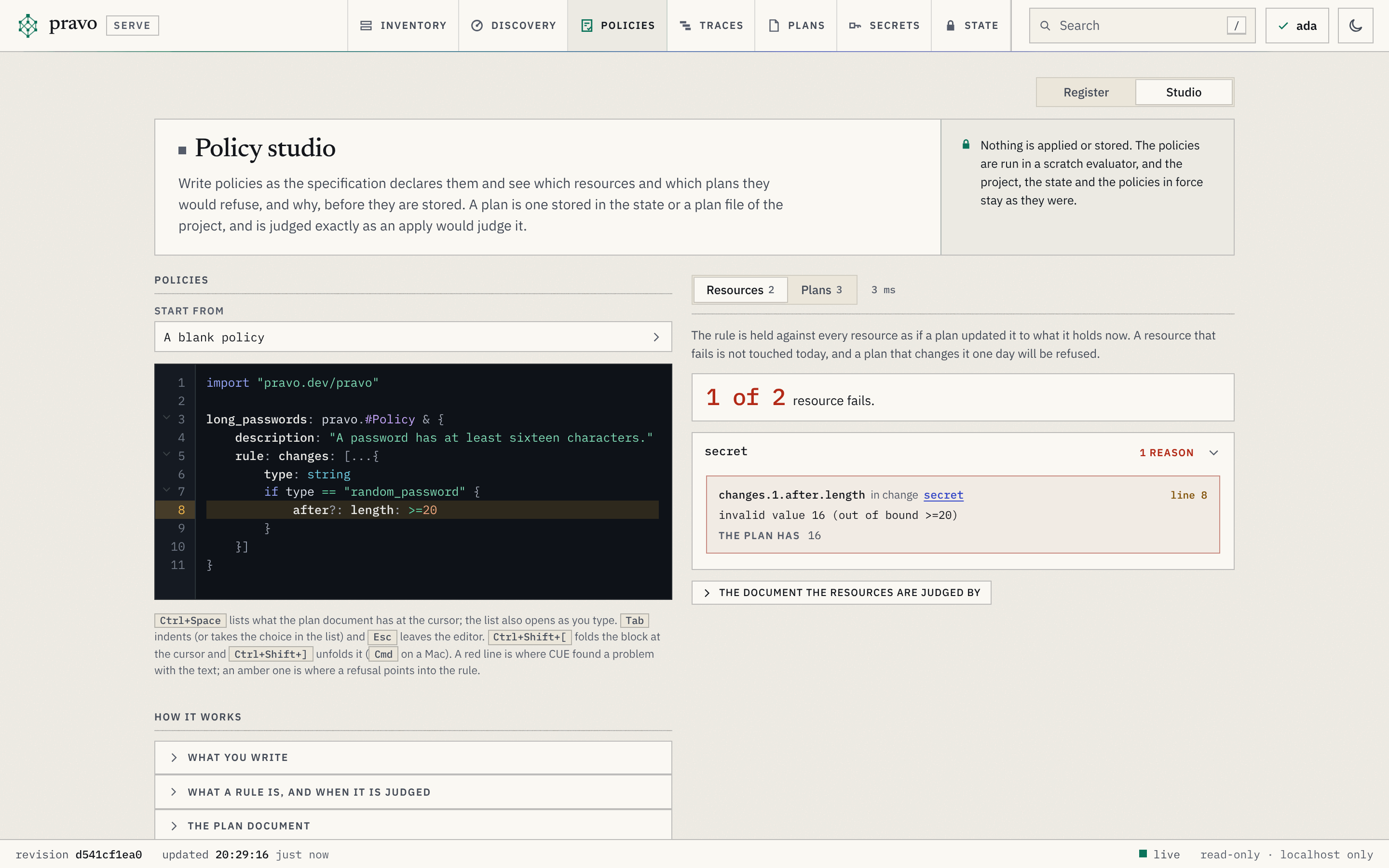

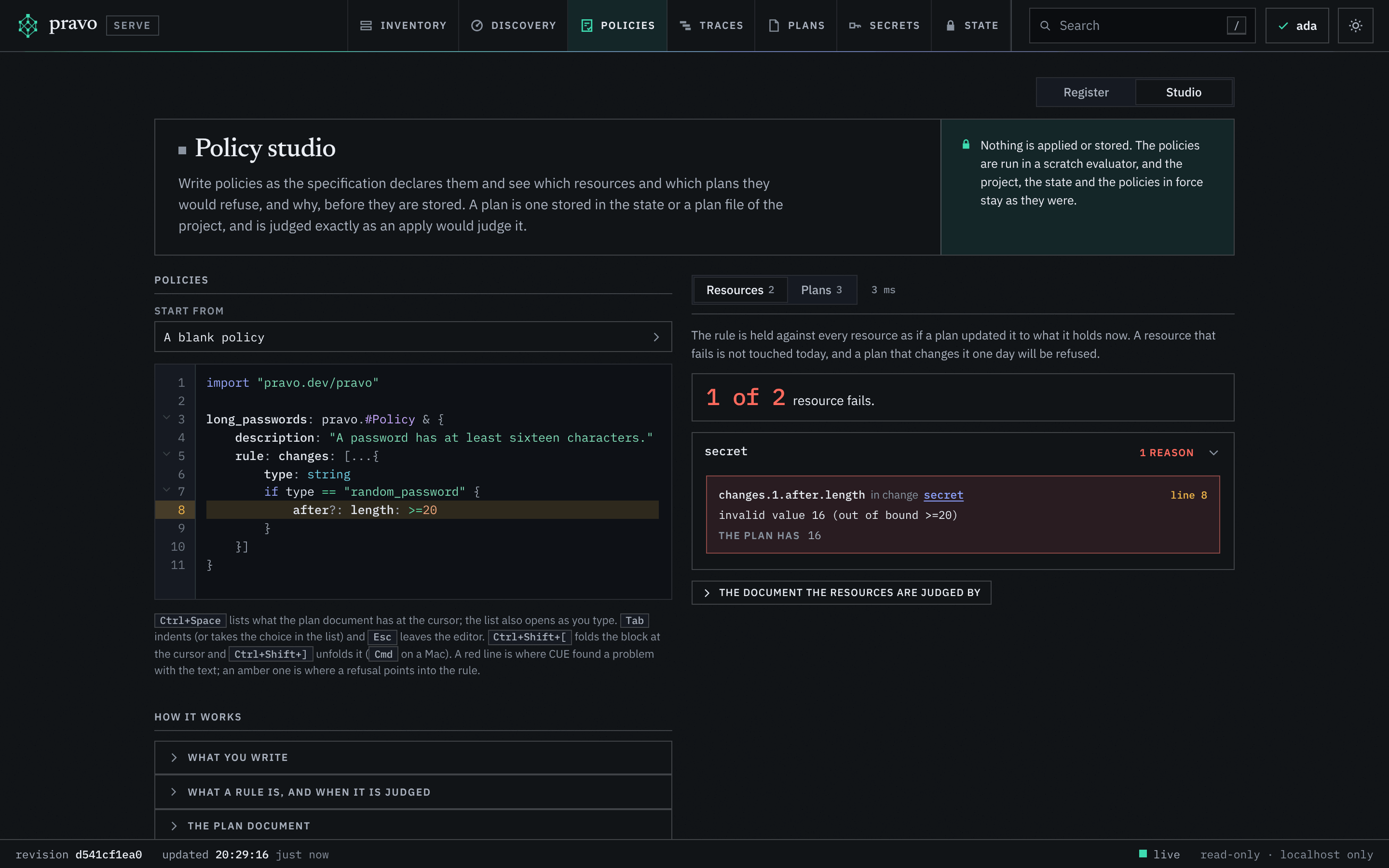

The policy studio with the policy long_passwords in the editor, its bound raised to at least 20 on line 8, which is marked in amber. At the right, Resources 2 is pressed with the time 3 ms, a sentence says the rule is held against every resource as if a plan updated it to what it holds now, and that a resource that fails is not touched today while a plan that changes it one day will be refused. The verdict reads 1 of 2 resources fail, with the row of secret open: 1 reason, changes.1.after.length in change secret, line 8, invalid value 16, out of bound at least 20, the plan has 16. Under it a disclosure for the document the resources are judged by. The policy studio with the policy long_passwords in the editor, its bound raised to at least 20 on line 8, which is marked in amber. At the right, Resources 2 is pressed with the time 3 ms, a sentence says the rule is held against every resource as if a plan updated it to what it holds now, and that a resource that fails is not touched today while a plan that changes it one day will be refused. The verdict reads 1 of 2 resources fail, with the row of secret open: 1 reason, changes.1.after.length in change secret, line 8, invalid value 16, out of bound at least 20, the plan has 16. Under it a disclosure for the document the resources are judged by.

fig. 3 The same rule with its bound raised, held against the resources: secret, with the sixteen characters it has, fails.

The resources are judged as one plan, so secret is changes.1, after the pet, and the value is the one the state holds. A resource that fails is not touched today. A plan that changes it one day will be refused, and the studio says so before the rule is in force, while the bound can still be talked about. Put it back to >=16.

Say why

A conflict names a path and two values. For a rule that people will read in a refusal, error() from B11 writes the sentence, and the sentence can name the resource. In the studio the reason reads the sentence; so does the terminal.

rules/no_replace.cue
import "pravo.dev/pravo"

no_replace: pravo.#Policy & {
	description: "A replacement destroys the old object. It needs a maintenance window."
	rule: changes: [...{
		addr:   string
		action: string
		if action == "replace" {
			error("\(addr): a replacement needs a maintenance window")
		}
	}]
}
terminalexit 5
$pravo policy test rules/no_replace.cue --plan longer.plan
Policy no_replace (rules/no_replace.cue: no_replace)
  ✗ longer.plan  file  would be refused
      no_replace: changes.0: secret: a replacement needs a maintenance window
      change secret
  0 of 1 judged plan hold.

Error: 1 plan would be refused

Three rules, three ways to write one: a shape for a count, a template with a bound for a value, and a template with a message for an action. Each reads one or two fields of the document and leaves the rest alone.

Break it: a field that is not there

A rule that misspells a field would hold for every plan, because no plan has the field it names. pravo closes that door: the document has a schema, pravo.#Plan, and a rule is checked against it when it is loaded. Put no_destroy back into the editor and misspell destroy:

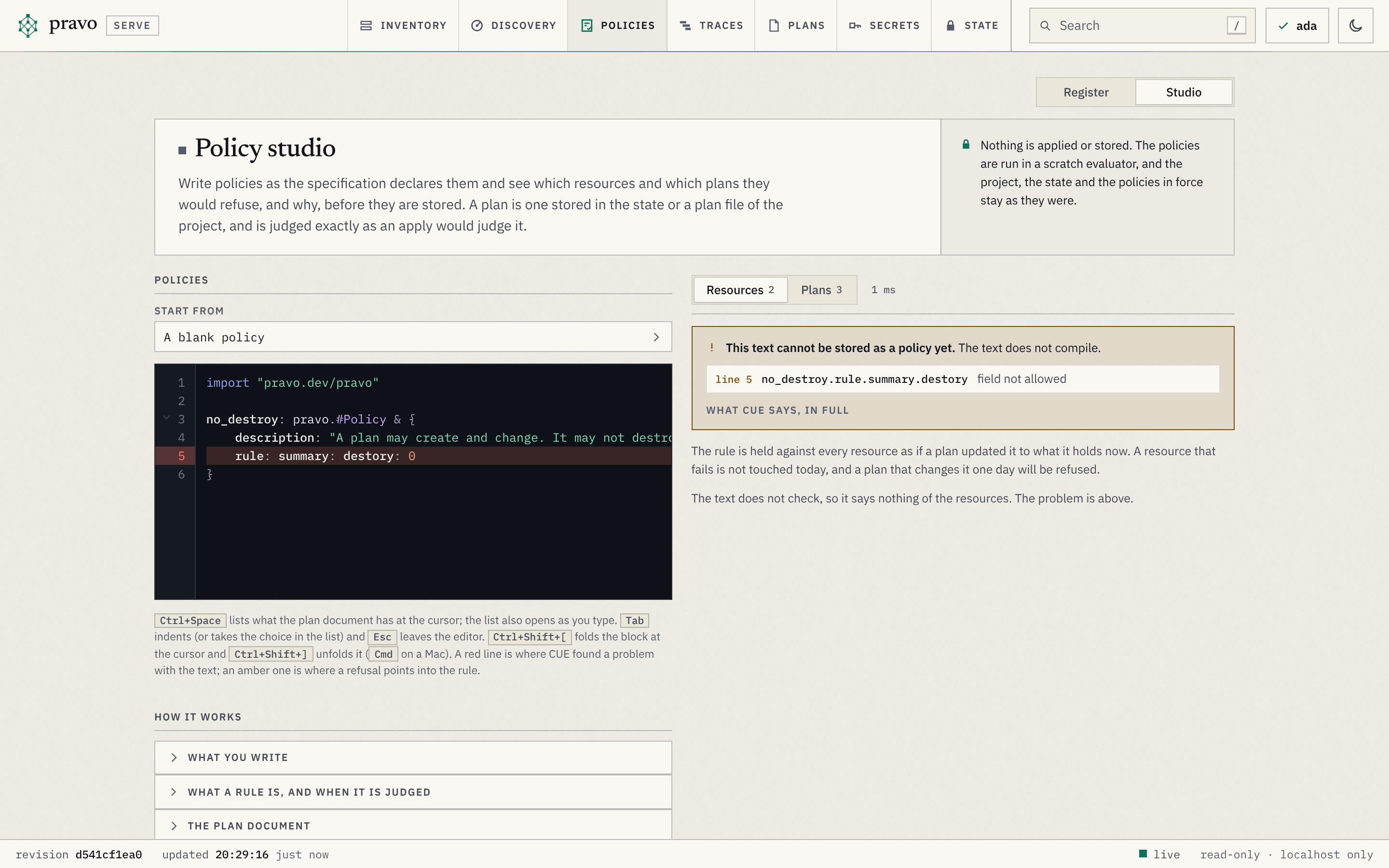

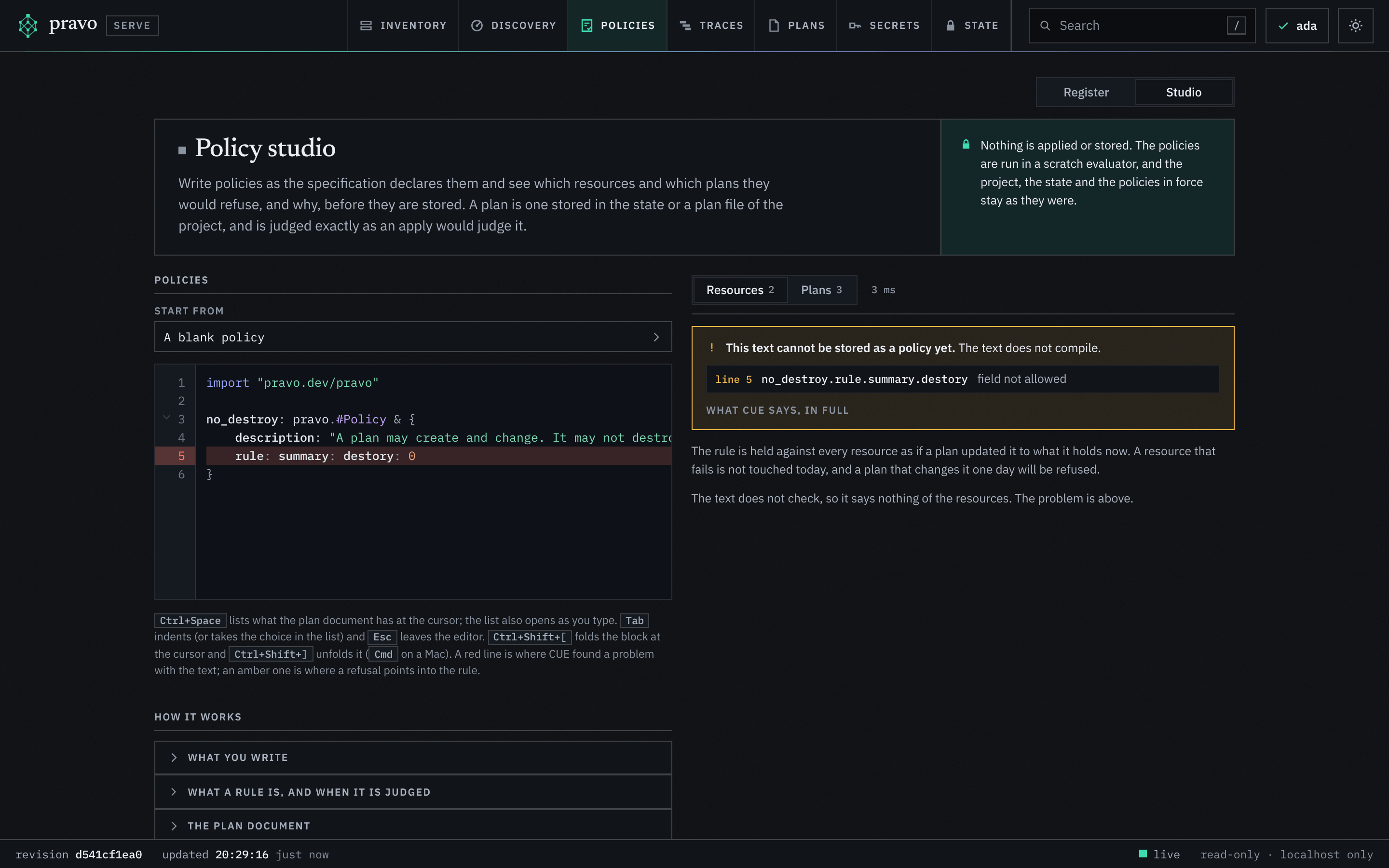

The policy studio with the policy no_destroy in the editor, the field destroy misspelt as destory on line 5, which is marked in red. At the right, Resources 2 is pressed with the time 0 ms, and an amber box says This text cannot be stored as a policy yet, the text does not compile, with the error line 5, no_destroy.rule.summary.destory, field not allowed, and a disclosure What CUE says, in full. Under it a sentence says the rule is held against every resource as if a plan updated it, and another that the text does not check, so it says nothing of the resources, and the problem is above. The policy studio with the policy no_destroy in the editor, the field destroy misspelt as destory on line 5, which is marked in red. At the right, Resources 2 is pressed with the time 0 ms, and an amber box says This text cannot be stored as a policy yet, the text does not compile, with the error line 5, no_destroy.rule.summary.destory, field not allowed, and a disclosure What CUE says, in full. Under it a sentence says the rule is held against every resource as if a plan updated it, and another that the text does not check, so it says nothing of the resources, and the problem is above.

fig. 4 A misspelt field. The line is red, and the verdict says the text cannot be stored as a policy, before anything is judged.

field not allowed is the error of A8: a definition rejects a field it does not declare. The rule is refused before it judges anything. The same text as a file is refused by policy test with exit code 6, and the block carries status=conflict.

rules/typo.cueconflict
import "pravo.dev/pravo"

no_destroy: pravo.#Policy & {
	description: "A plan may create and change. It may not destroy."
	rule: summary: destory: 0
}
terminalexit 6
$pravo policy test rules/typo.cue --plan add.plan
Policy typo (rules/typo.cue: no_destroy)
  cannot be used: no_destroy.rule.summary.destory: field not allowed:
      policy.cue:5:17

Error: 1 rule cannot be used

The same check runs when a policy is added to the root, with one change that holds no values, so that a template which reads a field no change has is caught then and not at the first plan that happens to have one.

Put a rule in force

A rule on trial is text in the editor and a file in rules/. A policy in force is the same text in the root, with the package clause of the specification, and the apply that carries it writes it to the state as a signed version. Restore the length first, and put long_passwords in the root.

main.cue
package team

import rnd "pravo.dev/providers/hashicorp/random"

$random: rnd.#Provider & {$version: "~> 3.6"}

pet:    $random.#Resource.random_pet & {length: 2}
secret: $random.#Resource.random_password & {length: 16}
second: $random.#Resource.random_pet & {length: 2, prefix: "db"}
policy.cue
package team

import "pravo.dev/pravo"

long_passwords: pravo.#Policy & {
	description: "A password has at least sixteen characters."
	rule: changes: [...{
		type: string
		if type == "random_password" {
			after?: length: >=16
		}
	}]
}
terminal
$pravo apply --auto-approve | grep -E '^(Policies| \+ long|Apply complete)'
Policies: +1 new, ~0 changed, -0 removed.
  + long_passwords (sha256:<digest>)
Policies: +1 new, ~0 changed, -0 removed.
Apply complete! Resources: 1 added, 0 changed, 0 destroyed. [txn <txn>]

The plan that adds a policy is not judged by it. From this apply on, every plan against the state is, and a short password is refused where the studio and policy test said it would be:

terminal
$sed -i 's/length: 16/length: 12/' main.cue
$pravo plan > plan.out 2>&1; echo "exit=$?"
$sed -n '/^Error/,$p' plan.out
exit=5
Error: the plan violates the policy long_passwords@1 (sha256:<digest>):
changes.0.after.length: invalid value 12 (out of bound >=16):
    long_passwords:5:12
    plan:1:137

The refusal names the version of the policy, the digest of its text, the path in the document and the line of the rule. A plan that holds is applied, and the transaction keeps a receipt: the versions and digests of the policies that judged it, so that the log says not only who applied but under which rules.

terminal
$sed -i 's/length: 12/length: 16/' main.cue
$sed -i 's/prefix: "db"/prefix: "web"/' main.cue
$pravo apply --auto-approve | grep '^Apply complete'
$pravo state log --json | jq -c '.[0].policies'
Apply complete! Resources: 1 added, 0 changed, 1 destroyed. [txn <txn>]
["long_passwords@1:<digest>"]

In the viewer, the register of the Policies section lists long_passwords as version 1 in force, with the text that was signed, and Try on plans opens the studio with it, for the next change to the rule.

Exercise

Exercise

A rule for the names

Write a rule in rules/pet_names.cue that says every random_pet has a length of at least 2. Try it in the studio against the resources, where every pet has two words, and show with policy test that a plan which shortens second to one word would be refused.

Hint 1

The shape is the one of long_passwords, with the type and the bound changed.

Hint 2

A plan file to test it on: set length: 1 on second, save the plan with --out, and put the length back. The policy in force has nothing to say about pets, so the plan is saved.

Solution
rules/pet_names.cue
import "pravo.dev/pravo"

pet_names: pravo.#Policy & {
	description: "A pet name has at least two words."
	rule: changes: [...{
		type: string
		if type == "random_pet" {
			after?: length: >=2
		}
	}]
}

Against the resources, both pets pass. Against the plan:

terminalexit 5
$sed -i 's/length: 2, prefix: "web"/length: 1, prefix: "web"/' main.cue
$pravo plan --out one-word.plan > /dev/null
$sed -i 's/length: 1, prefix: "web"/length: 2, prefix: "web"/' main.cue
$pravo policy test rules/pet_names.cue --plan one-word.plan
Policy pet_names (rules/pet_names.cue: pet_names)
  ✗ one-word.plan  file  would be refused
      pet_names: changes.0.after.length: invalid value 1 (out of bound >=2)
      change second; the plan has 1
  0 of 1 judged plan hold.

Error: 1 plan would be refused

Clean up

Stop the viewer with Ctrl-C, and destroy the resources:

terminal
$pravo destroy --auto-approve | tail -n 1
Destroy complete! Resources: 0 added, 0 changed, 3 destroyed. [txn <txn>]

Recap

  • A rule is a CUE value that the plan document has to unify with. A shape for a count, a list template with a guard and a bound for a value, a template with error() for a message that names the resource.
  • The policy studio, s in the viewer, holds the text of a policy against the plan files of the root and the plans stored in the state, or against every resource of the state as if a plan updated it, as you type. pravo policy test RULE.cue --plan FILE gives the same verdict in a terminal, with exit code 5 when a plan would be refused. Neither applies or stores anything.
  • The document has a schema. A rule that names a field the document does not have is refused when it is loaded, with field not allowed.
  • In the root, a rule is a pravo.#Policy node. The apply that carries it writes a signed version, every later plan is judged by it, and the transaction keeps the versions that judged it.

Check yourself

summary: destroy: 0 is in force. A plan adds twenty passwords of one character each. What happens?

It is applied. The rule has an opinion on summary.destroy and on nothing else. A rule about the passwords is a template over changes.

Why does pravo policy test refuse rules/typo.cue with exit code 6 and not hold it against the plans?

The rule names summary.destory, which the schema of the document does not have. A rule is checked against pravo.#Plan when it is loaded, so that a misspelt field does not hold silently for every plan.

The how-to page Write and roll out policies tests rules on fixtures in a pipeline, rolls a rule out as advice and retires one. Writing policies lists the shapes that work and the ones that do not. The next lesson, Ask for approvals, writes a rule that does not refuse a plan but makes it wait for a second person.
